subject | descreption |
---|---|
Machine Dimensions (mm) | 3600 x 2400 x 2750 |
Max Pipe Diameter | 760 mm ~ 30 “ |
Clamp actuator | Hydraulic Jack Ø80 |
Left & Right actuator | DC Motor & Worm Gearbox |
Up & Down actuator | Hydraulic Jack Ø80 |
Machine’s Electric Power Consumption | 380V – 16A |
Protection classification | IP 20 |
Machine Weight | 4500 Kg |

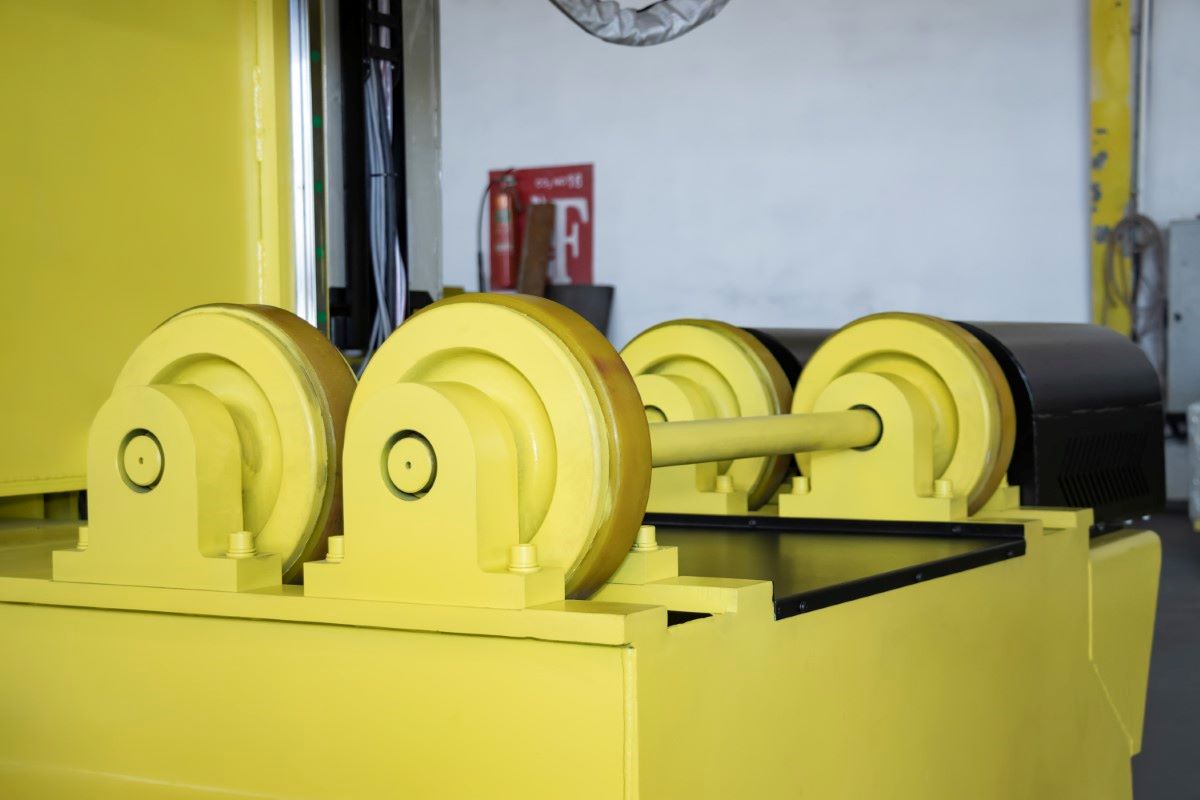

Saddle | Roller Bed (4 x Ø320) |
Power Source | TIG-Kara KTW 400 |

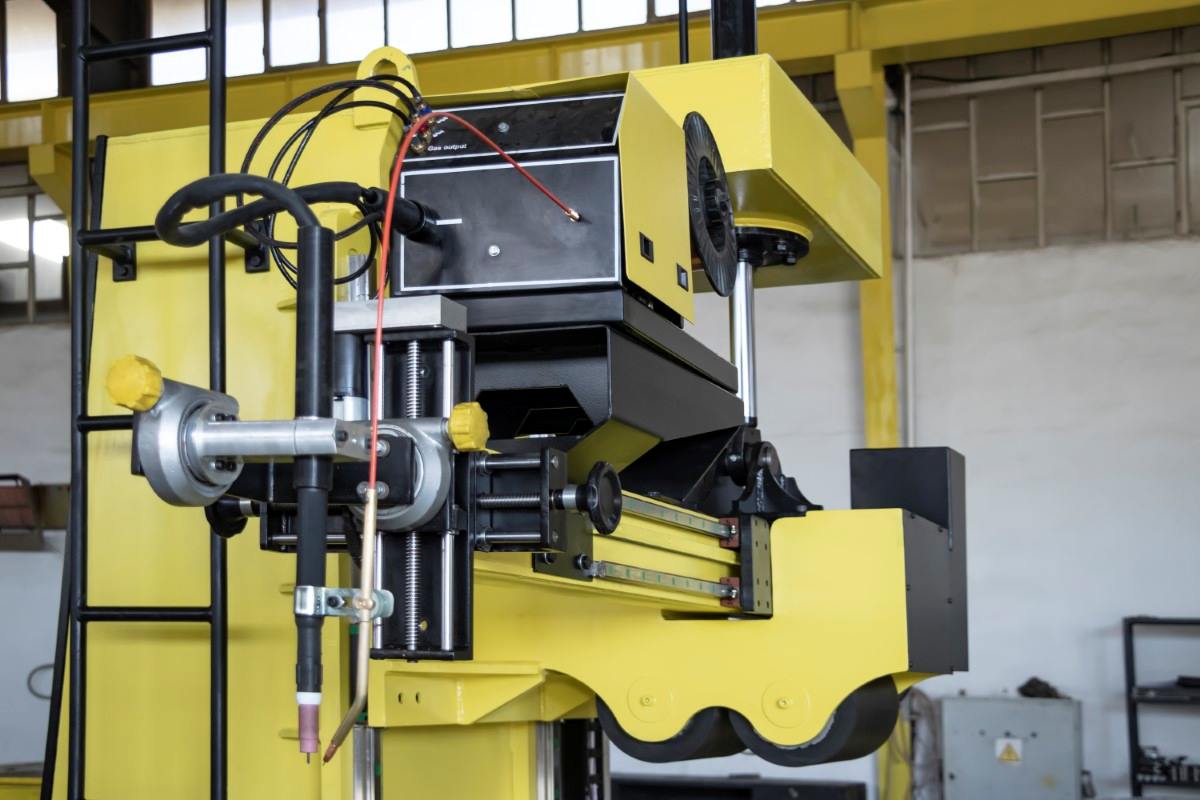

Torch actuator | Slider With waving torch |
Rotator Gearbox | Planetary Halo shaft |
Rotator Servo | Delta / Estun 1KW -1000RPM |
Guide way | Linear & Cabin 45 |
