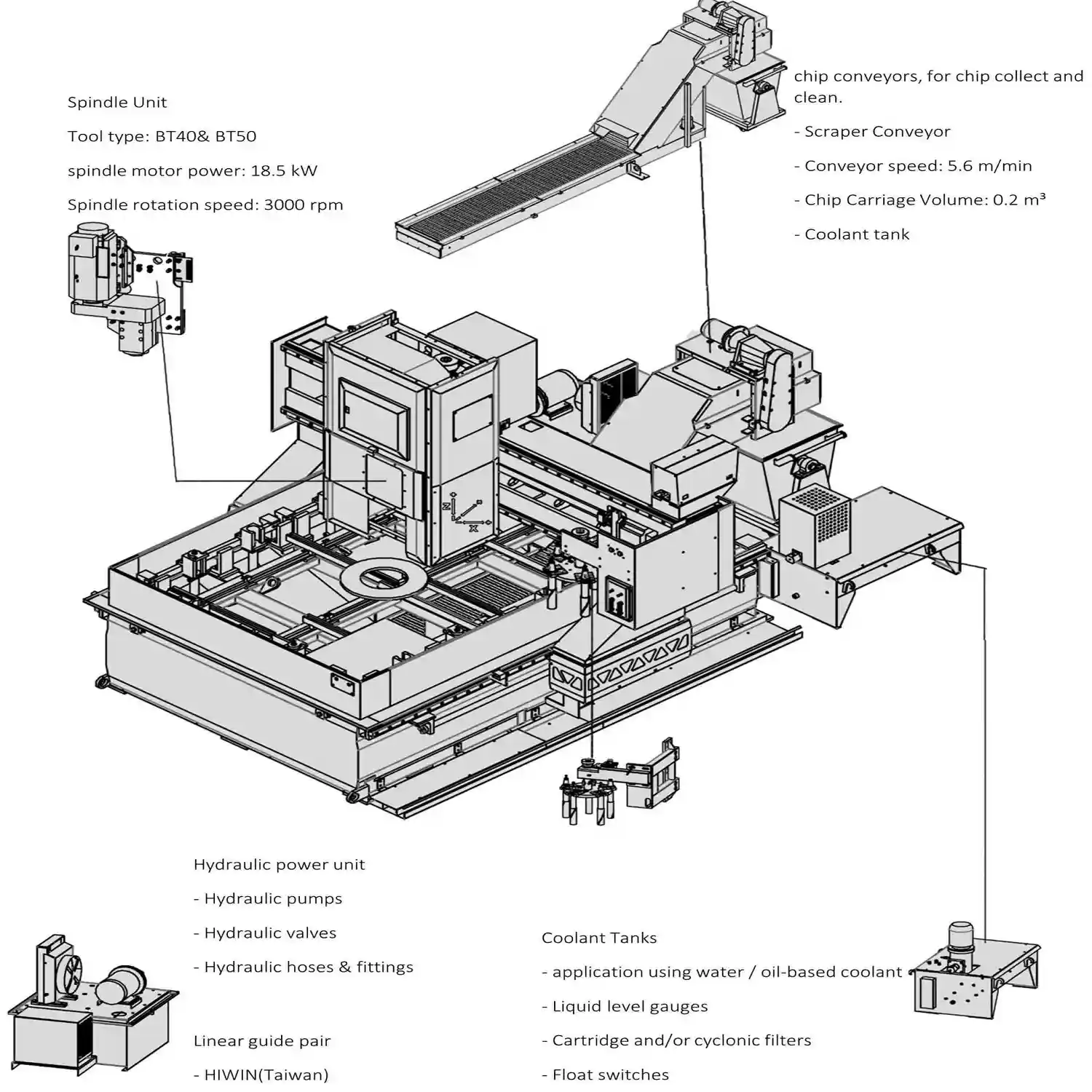

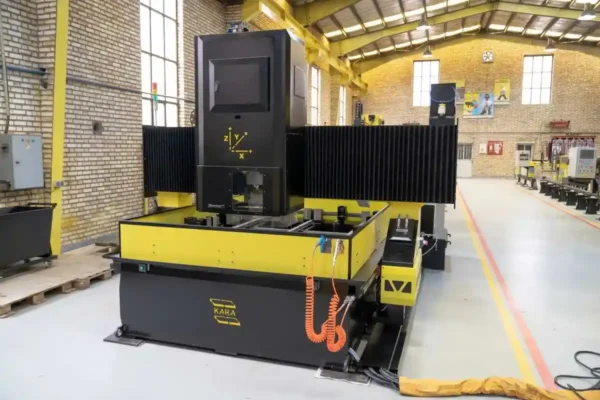

Descriptions | Subject |
---|---|
Length: 1000 mm, Width: 2000 mm, Thickness: 8 – 100 mm | Effective workpiece dimensions |
1 Spindle – BT 40 | Number of spindles |
3 AXES | Number of machine axes |
AC Servo Motor: 7.5 kw Max Spindle Speed: 3500 Rpm Max Drilling Torque: 180 Nm – Spindle Taper: BT 40 | Specifications and speed range of the spindle |
GSK – China | Machine’s control system |
G Code Generation (External Software) | Machine’s Control system features |
5 m/min | Maximum linear velocity of Y axis (Longitudinal movement of the gate) |
7 m/min | Maximum X-axis linear velocity (Transverse spindle motion) |
5 m/min | Maximum Z axis linear velocity (Vertical spindle motion) |
650 mm | Z-axis motion course (vertical spindle motion) |
± 0.02 mm | Machine’s Movement accuracy |
Depended to drill life and quality | Machine’s Drilling accuracy |

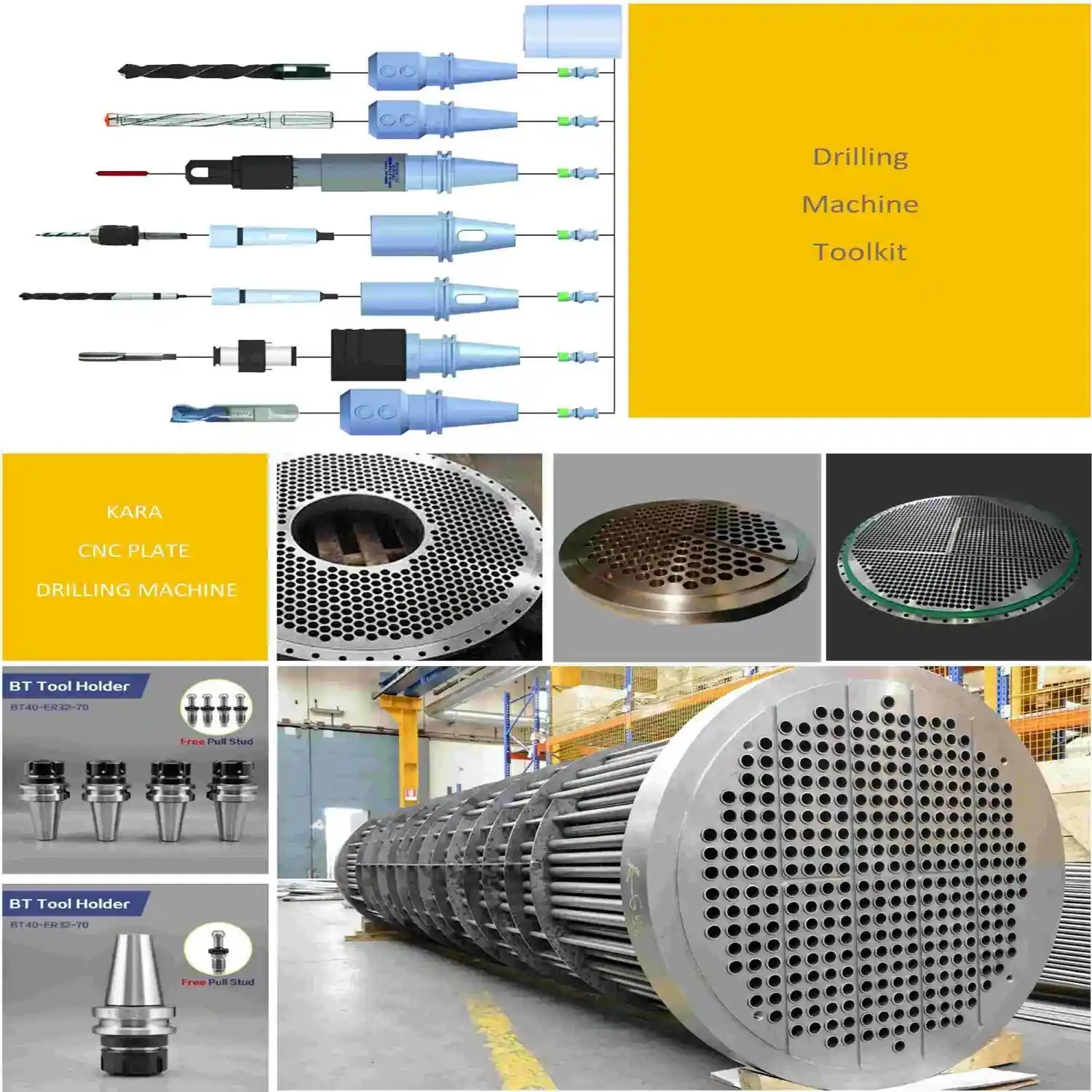

HSS: Min: 6 mm / Max: 35 mm (direct) HSS: Max 40 mm (with leading drill) Drill insert (spade drill) HSS Min: 10 mm / Max: 18 mm Index-able U-Drill: Min 24mm / Max 30 mm | Type of drills |
Simultaneously from 4 sides of the table with separate hydraulic control | Possibility of operating the hydraulic table of the device |
1 Piece up to 6 Pieces (middle & corner) | load capacity of machine’s hydraulic table |
Misting Coolant, External | coolant system |
AC Servo Motor: 2Kw – 1000 rpm Pulley and Timing Belt fixed Ball Screw + Linear Guide (2 sets) | Y-axis motor and gearbox (Longitudinal movement of the gate) |
AC Servo Motor: 2Kw – 1000 rpm Direct Flexible Coupling Ball Screw + Linear Guide | X-axis motor and gearbox (Spindle transverse motion) |
AC Servo Motor: 2Kw – 1000 rpm Electrical Break Pulley and Timing Belt / Ball Screw + Linear Guide | Z-axis motor and gearbox |
IP 20 | Panel’s degree of protection |
Nominal Current @ max. load = 380 V – 50 Hz – 3 Ph-90 A | Machine’s Electric Power Consumption (full load) |
Belt chip transfer conveyer – steel – movable – equipped with wheeled unloading bucket | Machine’s collecting chip system (Optional) |
Coolant Sprinkler Guns/ compress air: Blower Guns | Operator’s application equipment |
L: 3400 mm, W: 2800 mm, H: 2500 mm | Overall Machine’s Dimension (mm) |
4200 Kg | Overall Machine’s Weight (kg) |
جدول مشخصات فنی (2.2*1.6) تیپ A

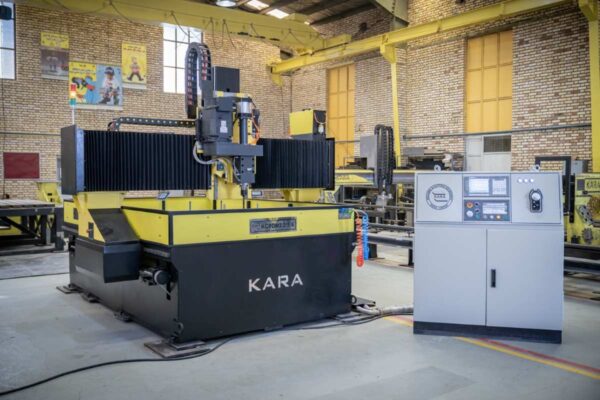

description | subject |
---|---|
Length: 2200 mm, Width: 1600 mm, Thickness: 10 – 250mm | Effective workpiece dimensions |
1 Spindle – BT 50 | Number of spindles |
3 AXES | Number of machine axes |
AC Servo Motor: 22 kw Max Spindle Speed: 3500 Rpm Max Drilling Torque: 280 Nm – Spindle Taper: BT 50 | Specifications and speed range of the spindle |

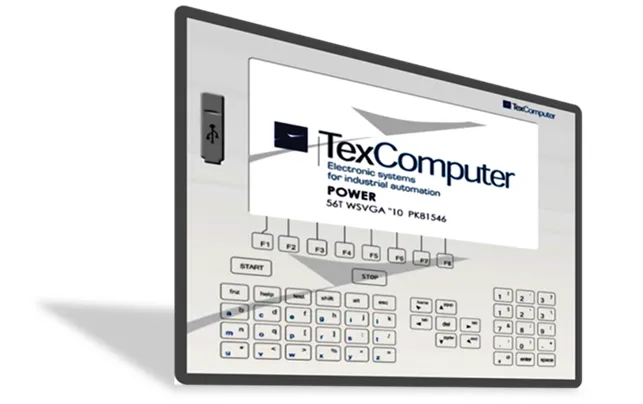

Tex Computer (ITALY) | Machine’s control system |
G Code Generation (External Software) – USB | Machine’s Control system features |
10000 mm/min | Maximum linear velocity of Y axis (Longitudinal movement of the gate) |
10000 mm/min | Maximum X-axis linear velocity (Transverse spindle motion) |
5000 mm/min | Maximum Z axis linear velocity (Vertical spindle motion) |
650 mm | Z-axis motion course (vertical spindle motion) |
± 0.02 mm | Machine’s Movement accuracy |
Depended to drill life and quality | Machine’s Drilling accuracy |
HSS: Min: 6 mm / Max: 40 mm (direct) HSS: Max 50 mm (with leading drill) Drill insert (spade drill) HSS Min: 10 mm / Max: 35 mm Index-able U-Drill: Min 24mm / Max 30 mm | Type of drills |
Horizontal Disc Type Magazine / Capacity: 6 Tools Tool Model: BT 40 / Max Tool Length: 320 mm | Tool change magazine (Optional) |
Simultaneously from 4 sides of the table with separate hydraulic control | Possibility of operating the hydraulic table of the device |
1 Piece up to 6 Pieces (middle & corner) | load capacity of machine’s hydraulic table |
Misting Coolant, Internal & External | coolant system |
AC Servo Motor: 3Kw – 1500 rpm Pulley and Timing Belt fixed Ball Screw + Linear Guide size 65 (2 sets) | Y-axis motor and gearbox (Longitudinal movement of the gate) |
AC Servo Motor: 3Kw – 1500 rpm Direct Flexible Coupling / Ball Screw + Linear Guide size 65 | X-axis motor and gearbox (Spindle transverse motion) |
AC Servo Motor: 3Kw – 1500 rpm Electrical Break Pulley and Timing Belt / Ball Screw + Linear Guide size 65 | Z-axis motor and gearbox |
IP 20 | Panel’s degree of protection |
Nominal Current @ max. load = 380 V – 50 Hz – 3 Ph-90 A | Machine’s Electric Power Consumption (full load) |
Belt chip transfer conveyer – steel – movable – equipped with wheeled unloading bucket | Machine’s collecting chip system |
Coolant Sprinkler Guns/ compress air: Blower Guns | Operator’s application equipment |
L: 6100 mm, W: 4100 mm, H: 2600 mm | Overall Machine’s Dimension (mm) |
7100 Kg | Overall Machine’s Weight (kg) |
جدول مشخصات فنی (2.2*1.6) تیپ B

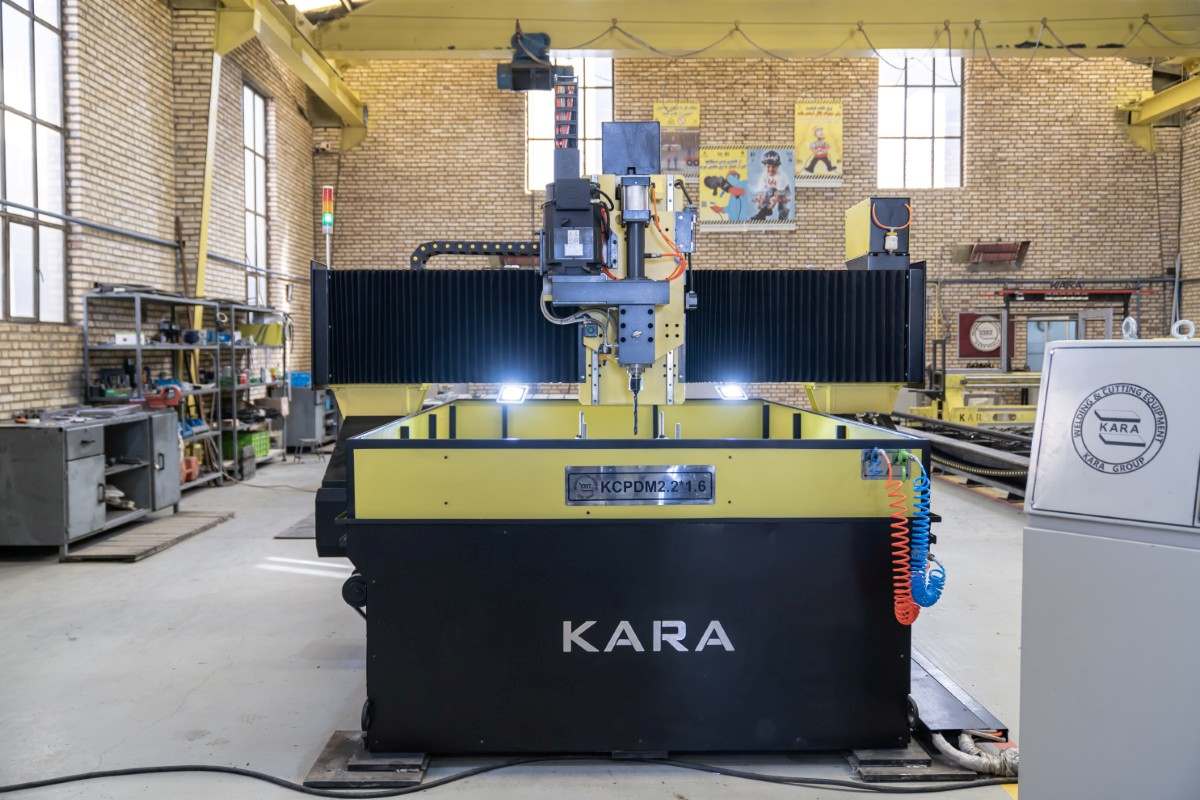

Descriptions | Subject |
---|---|
Length: 2200 mm, Width: 1600 mm, Thickness: 8 – 100 mm | Effective workpiece dimensions |
1 Spindle – BT 40 | Number of spindles |
3 AXES | Number of machine axes |
AC Servo Motor: 18.5 kw Max Spindle Speed: 3500 Rpm Max Drilling Torque: 230 Nm – Spindle Taper: BT 40 | Specifications and speed range of the spindle |
Tex Computer (ITALY) | Machine’s control system |
G Code Generation (External Software) – USB | Machine’s Control system features |
10000 mm/min | Maximum linear velocity of Y axis (Longitudinal movement of the gate) |
10000 mm/min | Maximum X-axis linear velocity (Transverse spindle motion) |
5000 mm/min | Maximum Z axis linear velocity (Vertical spindle motion) |
650 mm | Z-axis motion course (vertical spindle motion) |
± 0.02 mm | Machine’s Movement accuracy |
Depended to drill life and quality | Machine’s Drilling accuracy |
HSS: Min: 6 mm / Max: 35 mm (direct) HSS: Max 40 mm (with leading drill) Drill insert (spade drill) HSS Min: 10 mm / Max: 35 mm Index-able U-Drill: Min 24mm / Max 30 mm | Type of drills |
Horizontal Disc Type Magazine Capacity: 6 Tools Tool Model: BT 40 Max Tool Length: 320 mm | Tool change magazine (Optional) |
Simultaneously from 4 sides of the table with separate hydraulic control | Possibility of operating the hydraulic table of the device |
1 Piece up to 6 Pieces (middle & corner) | load capacity of machine’s hydraulic table |
Misting Coolant, Internal & External | coolant system |
AC Servo Motor: 3Kw – 1500 rpm Pulley and Timing Belt fixed Ball Screw + Linear Guide (2 sets) | Y-axis motor and gearbox (Longitudinal movement of the gate) |
AC Servo Motor: 3Kw – 1500 rpm Direct Flexible Coupling Ball Screw + Linear Guide | X-axis motor and gearbox (Spindle transverse motion) |
AC Servo Motor: 3Kw – 1500 rpm Electrical Break Pulley and Timing Belt Ball Screw + Linear Guide | Z-axis motor and gearbox |
IP 20 | Panel’s degree of protection |
Nominal Current @ max. load = 380 V – 50 Hz – 3 Ph-90 A | Machine’s Electric Power Consumption (full load) |
Belt chip transfer conveyer – steel – movable – equipped with wheeled unloading bucket | Machine’s collecting chip system |
Coolant Sprinkler Guns/ compress air: Blower Guns | Operator’s application equipment |
L: 6100 mm, W: 4100 mm, H: 2600 mm | Overall Machine’s Dimension (mm) |
6500 Kg | Overall Machine’s Weight (kg) |
جدول مشخصات فنی (2.2*1.6) تیپ C

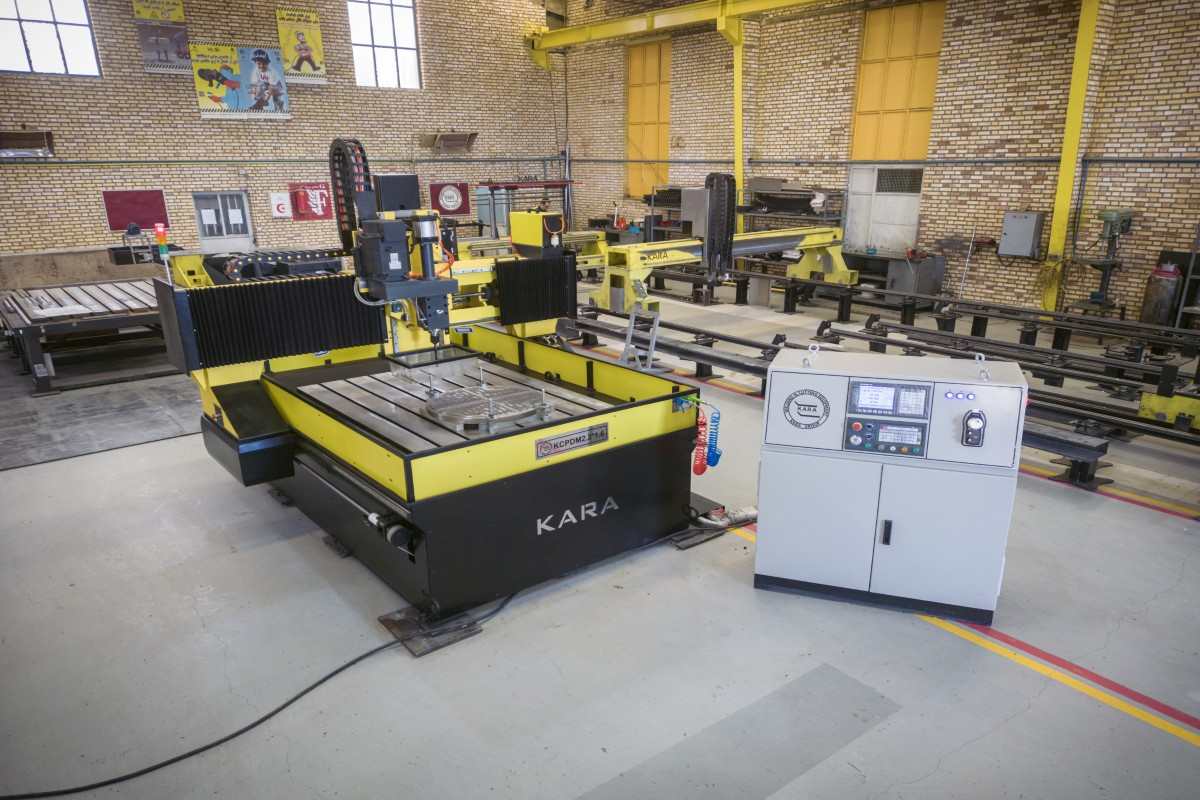

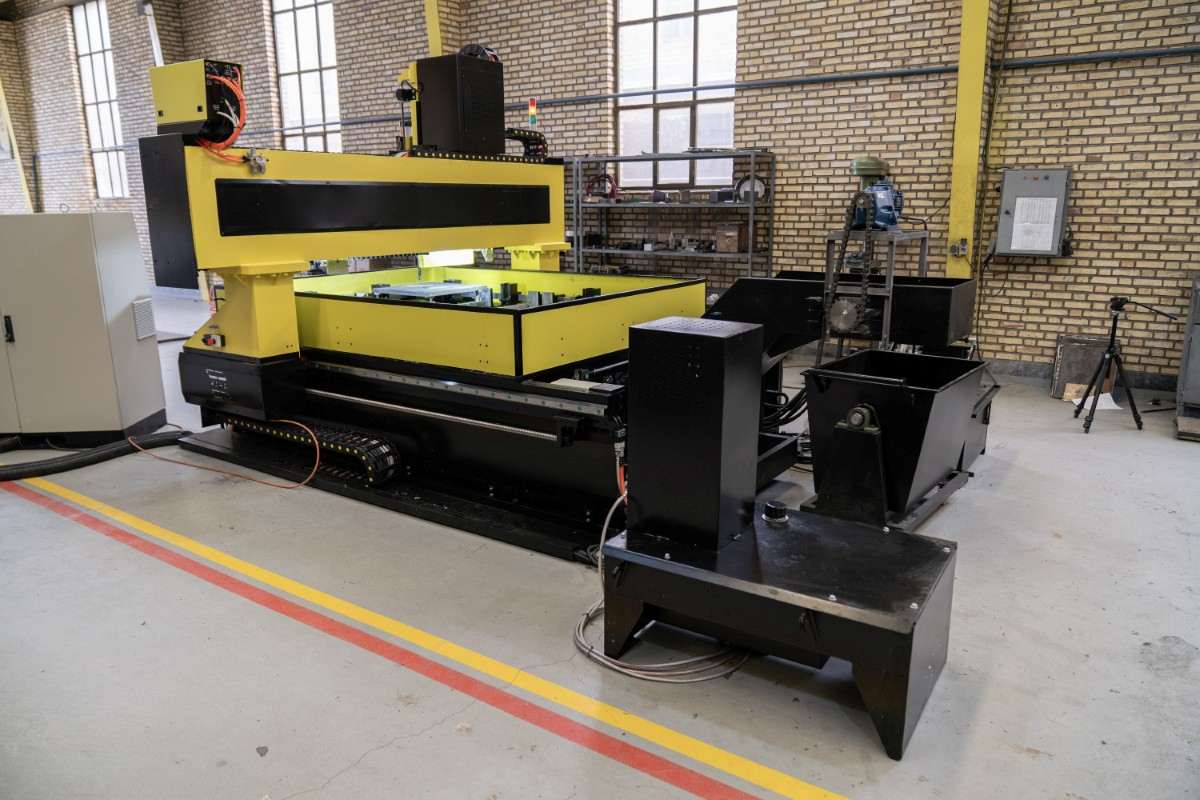

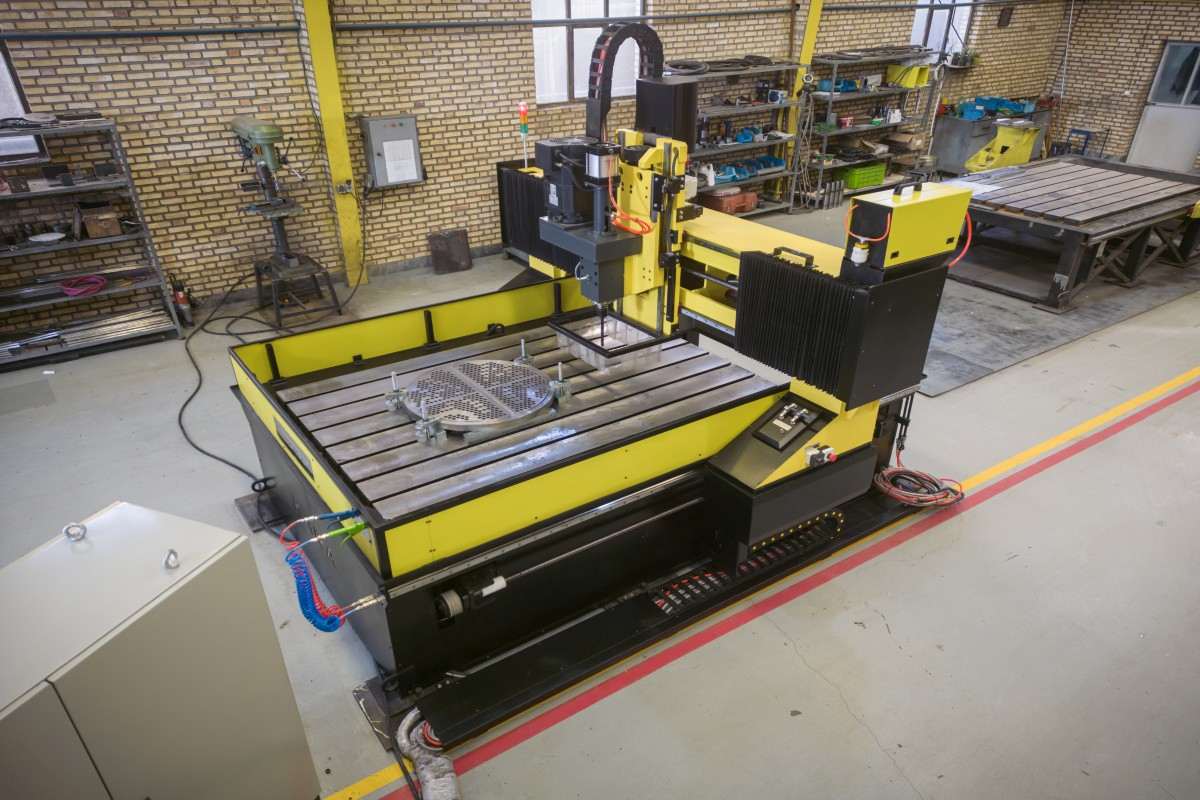

description | subject |
---|---|
Length: 2200 mm, Width: 1600 mm, Thickness: 8 – 100 mm | Effective workpiece dimensions |
1 Spindle – ISO 40 | Number of spindles |
3 AXES | Number of machine axes |
AC Motor: 11 kw rpm 1400 Max Spindle Speed: 900 Rpm Spindle Taper: ISO 40 | Specifications and speed range of the spindle |
Hust (China) | Machine’s control system |
G Code Generation (External Software) – USB | Machine’s Control system features |
5500 mm/min | Maximum linear velocity of Y axis (Longitudinal movement of the gate) |
5500 mm/min | Maximum X-axis linear velocity (Transverse spindle motion) |
2500 mm/min | Maximum Z axis linear velocity (Vertical spindle motion) |
650 mm | Z-axis motion course (vertical spindle motion) |
± 0.02 mm, Depended to drill life and quality | Machine’s Movement accuracy |
HSS: Min: 6 mm / Max: 35 mm (direct) HSS: Max 40 mm (with leading drill) | Machine’s Drilling accuracy |
Table Equipped with T Slot | Type of Table |
Typical Coolant system | coolant system |
AC Servo Motor: 2.5Kw – 1500 rpm Pulley and Timing Belt fixed Ball Screw + Linear Guide (2 sets) | Y-axis motor and gearbox (Longitudinal movement of the gate) |
AC Servo Motor: 1.5Kw – 1500 rpm Direct Flexible Coupling / Ball Screw + Linear Guide | X-axis motor and gearbox (Spindle transverse motion) |
AC Servo Motor: 2.3Kw – 1500 rpm Electrical Break Pulley and Timing Belt / Ball Screw + Linear Guide | Z-axis motor and gearbox |
IP 20 | Panel’s degree of protection |
Nominal Current @ max. load = 380 V – 50 Hz – 3 Ph-90 A | Machine’s Electric Power Consumption (full load) |
L: 4100 mm, W: 3200 mm, H: 2400 mm | Overall Machine’s Dimension (mm) |
4500 Kg | Overall Machine’s Weight (kg) |
جدول مشخصات فنی (3.2*2.2)

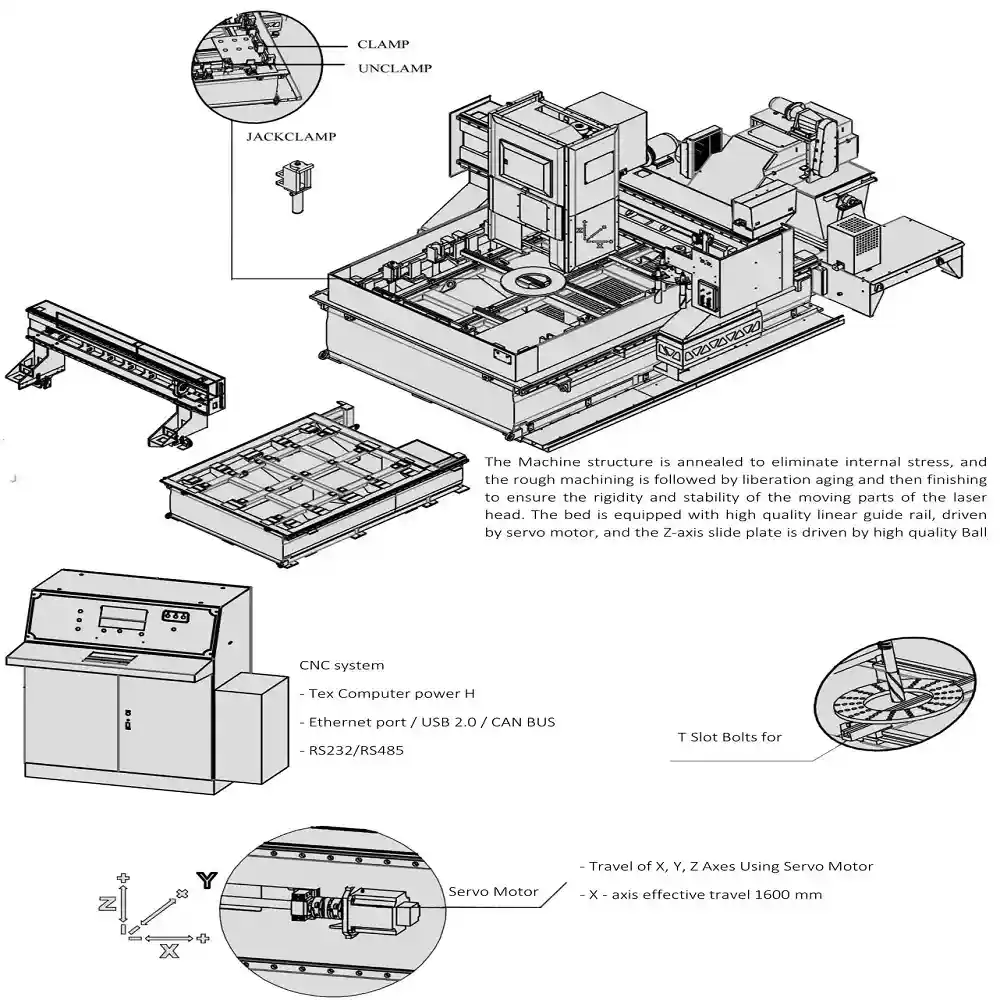

description | subject |
---|---|
Length: 2200 mm, Width: 3200 mm, Thickness: 8 – 100 mm | Effective workpiece dimensions |
1 Spindle – BT 50 | Number of spindles |
3 AXES | Number of machine axes |
AC Servo Motor: 22 kw Max Spindle Speed: 3500 Rpm Max Drilling Torque: 240 Nm – Spindle Taper: BT 40 | Specifications and speed range of the spindle |
Tex Computer (ITALY) | Machine’s control system |
G Code Generation (External Software) – USB | Machine’s Control system features |
10000 mm/min | Maximum linear velocity of Y axis (Longitudinal movement of the gate) |
16000 mm/min | Maximum X-axis linear velocity (Transverse spindle motion) |
8000 mm/min | Maximum Z axis linear velocity (Vertical spindle motion) |
650 mm | Z-axis motion course (vertical spindle motion) |
± 0.02 mm | Machine’s Movement accuracy |
Depended to drill life and quality | Machine’s Drilling accuracy |
HSS: Min: 6 mm / Max: 40 mm (direct) HSS: Max 50 mm (with leading drill) Drill insert (spade drill) HSS Min: 10 mm / Max: 35 mm Index-able U-Drill: Min 24mm / Max 30 mm | Type of drills |
Horizontal Disc Type Magazine / Capacity: 6 Tools Tool Model: BT 40 / Max Tool Length: 320 mm | Tool change magazine (Optional) |
T Slot Clamping | Possibility of operating the clamp of the device |
Misting Coolant, Internal & External | coolant system |
AC Servo Motor: 3Kw – 1500 rpm Pulley and Timing Belt fixed Ball Screw + Linear Guide (2 sets) | Y-axis motor and gearbox (Longitudinal movement of the gate) |
AC Servo Motor: 3Kw – 1500 rpm Direct Flexible Coupling / Ball Screw + Linear Guide | X-axis motor and gearbox (Spindle transverse motion) |
AC Servo Motor: 3Kw – 1500 rpm Electrical Break Pulley and Timing Belt / Ball Screw + Linear Guide | Z-axis motor and gearbox |
IP 20 | Panel’s degree of protection |
Nominal Current @ max. load = 380 V – 50 Hz – 3 Ph-90 A | Machine’s Electric Power Consumption (full load) |
Belt chip transfer conveyer – steel – movable – equipped with wheeled unloading bucket | Machine’s collecting chip system |
Coolant Sprinkler Guns/ compress air: Blower Guns | Operator’s application equipment |
L: 6500 mm, W: 4900 mm, H: 2600 mm | Overall Machine’s Dimension (mm) |
8350 Kg | Overall Machine’s Weight (kg) |
